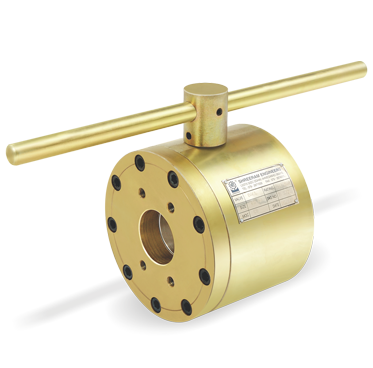

| 2 WAY BALL VALVE SRE 124 SAE WITH
DIRECT MOUNTING SAE FLANGE.
MODEL - 124 DM SAE |
| Technical
Specification |
- Materials-Carbon Steel/Stainless Steel
- Ball Seat - POM/PEEK/PTFE/GFT/CFT
- Body & Stem Seals-PTFE /NBR/FPM
- Size - 1/4"[6MMNB]-4" [100MMNB]
- Pressure Range-up to 1000Bar
- Temp. Range - 40°C + 200°C
- End Conn. Screwed-BSP (ISO-228 T1) NPT
Male/Female Extended Nipple, Male
threads DIN2353 L / DIN-2353 S
- Accessories: Actuators, locking device,
limit switches proximity switches (for position
indication and remote controls)
|
|
 |

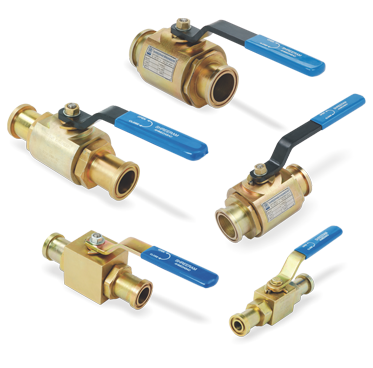

2 WAY BALL VALVE SRE 182 SERIES
WITH SAE SPLIT FLANGE .
MODEL - SRE - 182 SF
|
| Technical
Specification |
- Materials - Carbon Steel/Stainless Steel
- Ball Seat - POM/PEEK/PTFE/GFT/CFT
- Body & Stem Seal - PTFE/NBR/FPM
- Size - 1/2" ,3/4",1" Block Body Type
- Size - 1 ¼" , 1 ½" , 2" Forged Body Type
- Pressure Range - Up to 400Bar
- Temp. Range - 40°C +200°C
- End Connection - SAE Spli Flange NPT
- Accessories - Actuators , Locking device,
Limit Switches, Proximity switches
(for position indication and remote controls)
Spare Seal kits & `O' rings.
|
|
 |
|
| | | |
|
|
