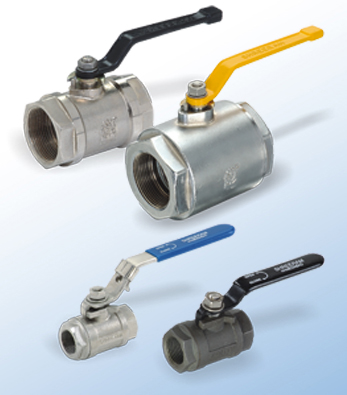

2-WAY LOW PRESSURE BALL VALVE
MODEL - SRE 124S
Technical Specification
  • Materials-Cast Steel/Stainless Steel
  • Ball Seat - PTFE /GFT/CFT
  • Body & Stem Seals-PTFE /NBR
  • Size - 1/4”[6MMNB]-4” [100MMNB]
  • Pressure Range-up to 70Bar
  • Temp. Range - 40°C + 150°C
  • End Conn. Screwed-BSP (ISO-228 T1)
    NPT Male/Female Extended Nipple.
  • Accessories: Locking device
