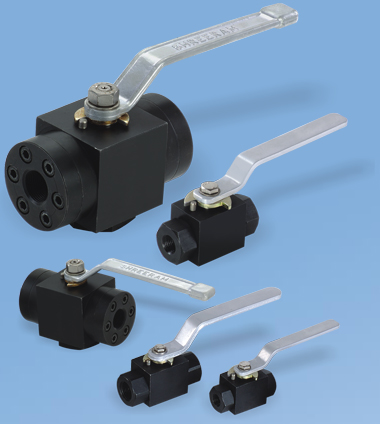

2 - WAY HIGH PRESSURE BALL VALVE
MODEL - SRE 182 |
| Technical Specification |
- Materials-Carbon Steel/Stainless Steel
- Ball Seat - POM/PEEK/PTFE/GFT/CFT
- Body & Stem Seals-PTFE /NBR/FPM
- Size - 1/4”[6MMNB]-4” [100MMNB]
- Pressure Range-up to 1000Bar
- Temp. Range - 40°C + 200°C
- End Conn. Screwed-BSP (ISO-228 T1)
NPT Male/Female Extended Nipple,
Male threads DIN2353 L / DIN-2353 S
- Accessories: Actuators, locking device,
limit switches proximity switches (for
position indication and remote controls
|
|
|
|

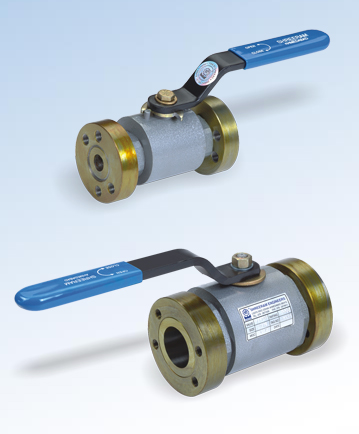

| 2 - WAY HIGH PRESSURE BALL VALVE
MODEL - 124 SAE |
| Technical
Specification |
- Materials-Carbon Steel/Stainless Steel
- Ball Seat - POM/PEEK/PTFE /GFT/CFT
- Body & Stem Seals-PTFE /NBR/FPM
- Size -1/2”[12MMNB]-4” [100MMNB]
- Pressure Range-up to 400Bar
- Temp. Range - 40°C + 200°C
- End Conn. SAE -4 Bolt 3000PSI and
SAE -4 Bolt 6000PSI
- Accessories: Actuators, locking device.
|
|
 |
|
|
|
| | | |
|
|
